首頁>產品中心

鋁合金一級傳動裝置

Aluminum alloy single-stage drive device

產品簡介

本產品外殼為鋁合金材質、表面美觀大方。附有結合子，適應性強。采用蝸輪蝸桿傳動副，輸出扭矩大，自鎖可靠。適用于90°回轉的蝶閥、球閥、旋塞閥、調節閥等閥門的控制。

The shell of this product is made of aluminum alloy with beautiful surface. With binders, strong adaptability. Using worm gear and worm transmission pair, output Torque is large, self-locking reliable. Suitable for 90 Rotary Butterfly Valve, ball valve, plug valve, control valve and other valves control.

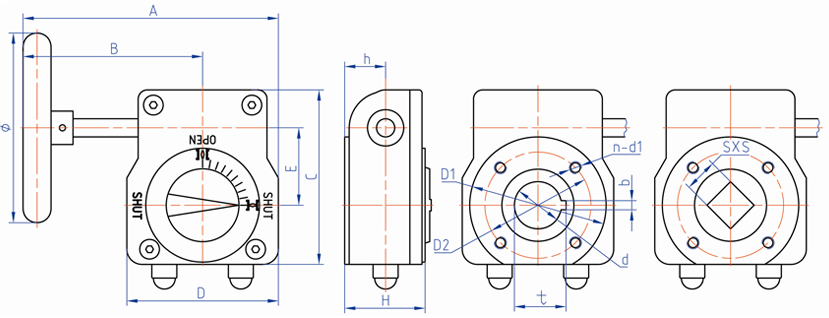

外形尺寸表

型號/ Model	速比/Ratio	輸出扭矩 Output(N.m)	輸入扭矩 Input(N.m)	手輪直徑 Hand-wheel dia(mm)	A	B	C	D	E	h	H	Φ	重量/WT(kg)
3DⅢ-10	40:1	150	18.5	100	139	99	98	80	42.5	26	48	120	1.45
3DⅢ-15	37:1	250	34	120	165	115	115	100	50	27	54	140	1.9
3DⅢ-50	45:1	750	83	300	293	220	155	146	60	38	71	300	5.2
3DⅢ-120	40:1	1200	150	400	410	323	191	175	80	39.5	80	400	9.2

連接尺寸表

型號/ Model	適用閥門口徑 Available opening of butterfly valve	d	b	t	S×S	D1	D2	n-d1	位置/Position (+ ×)
3DⅢ-10	2＂- 4＂	15.9	5	18.2		80	50 70	4-M6 4-M8	×
		-	-	-	9×9
		-	-	-	11×11
3DⅢ-15	5＂- 6＂	19.05	5	21.35		89	70	4-M8	×
		-	-	-	9×9
		-	-	-	11×11
		-	-	-	14×14
		-	-	-	17×17
3DⅢ-50	8＂- 10＂	28.6	8	31.9		140	102	4-M10	×
		-	-	-	19×19
		-	-	-	22×22
3DⅢ-120	12＂- 14＂	31.8	8	35.1		175	140	4-M16	×
		-	-	-	22×22
		-	-	-	27×27
